B022 ROTARY Series is our new creation to inspire and tribute to the legendary Rotary engine. From which we took the iconic engine as this project concept. From there we studied how this Rotary engine runs and took the motions of the engine rotors and turned them into display for time in Minutes & Hours. By mean of such we have made use of the twin rotors system and turned them into hours and minutes indicators while the unique Rotary engine rotor running track has also allow us to create a unique time display.

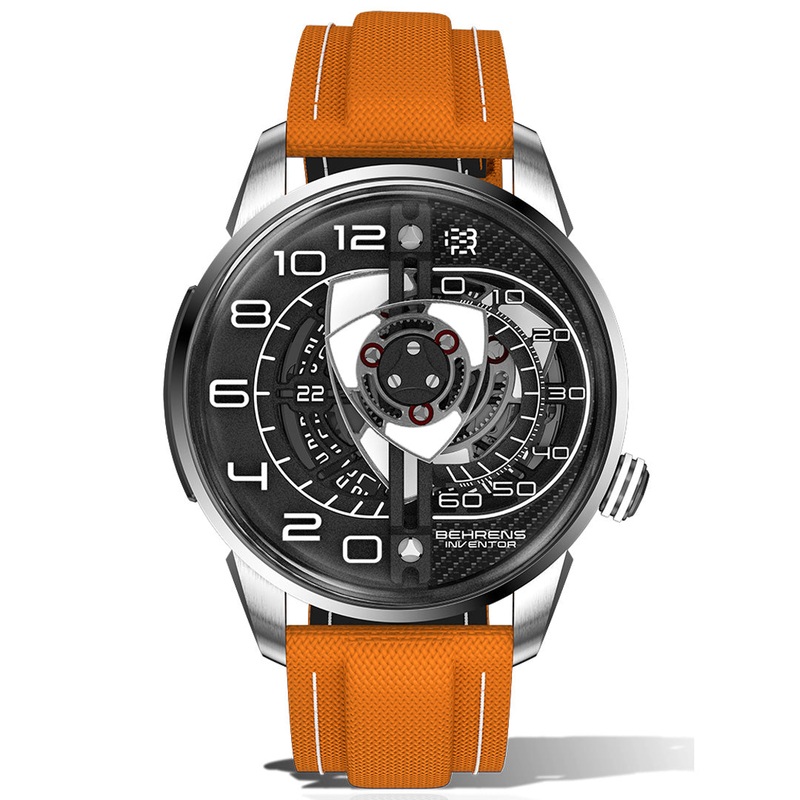

B022 Rotary is a mechanical wristwatch which we have constructed base on a ETA caliber 2824-2 Swiss automatic movement as a power source. From there, we have designed and constructed a twin-rotary construction module on top which simulate the motion of the iconic Rotary engine. The large rotor with the triangular pointers rotating with a fixed but non-uniformed track at the bottom alongside with the applied metal indexes on the left-hand side of the dial will represent the time in HOURS, whereas the smaller triangular 3-pointer rotor on top alongside with the metal applied indexes on the right-hand side of the dial will represent the time in MINUTES. (Both rotors are installed with sufficient numbers of rubies for reducing friction and to increase efficiency.)

The dial and the rotors do come with luminous to show time in the dark. The dial has been skeletonized so that the mechanism can be clearly seen.

Specifications
Dial: Black skeletonized
Case Material: Grade 5 Titanium
Case Size: 42mm diameter (without Crown)
Case Back: See-Through with Sapphire Crystal Display Back
Crystal: Domed Sapphire Crystal
Waterproof: 50m (5ATM)
Movement: Swiss Automatic Movement with modified blue steel tone Rotary shaped rotor.
Strap: New design cloth material strap with leather back, pin buckle (French Made)
Functions: Hour & Minute, Date
Warranty: 3-years Worldwide Warranty (basic)
Weight: 2.5 kg
Dimensions: 30 25 20 cm
